SD20 Female Male Connector 2 Pin Quick Disconnect Waterproof Right Angle Cable Plug Panel Mount Socket, 25A Power 14 AWG

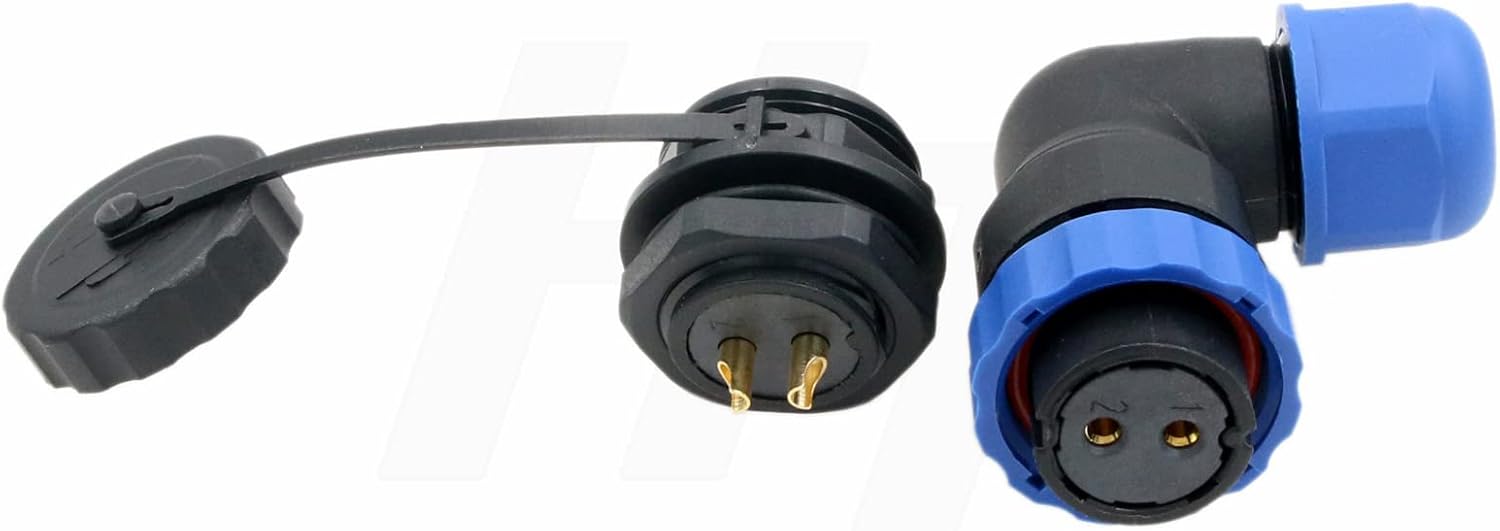

Features: In the harsh environment can provide a safe and reliable connection. SD20(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power. Specifications: SD20: Material: Plastic IP Rating: IP68 Panel Cutout Diameter: 20mm Cable Outer Diameter Range:8-12mm Coupling Type: Threaded Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -40~+100℃ Humidity: +40℃ 95±3% Vibrator: 10~500Hz, acceleration 100m/s² Shock: 40~80times/min, acceleration 250m/s² Package Includes: 1 x Right Angle Cable Plug with Female Pins 1 x Chassis Socket with Male Pins 1 x Waterproof / Dustproof Cap

• 2 pin panel mount socket and 90-degree angle male plug, any direction elbow
• Cable outer diameter range: 8-12mm, Wire Size: ≤4mm² or 12AWG 14 AWG, Contact Diameter: Φ2.8mm. Rated Voltage/Current : AC 380V/25A, Resistance: 1mΩ
• Protected against solids & liquids, provide a secure and reliable connection in the harsh environment
• For indoor and outdoor watertight use
• Waterproof IP68, plastic shell, threaded coupling, panel mount, quick disconnect, solder, 90-degree angled cable plug & panel mount socket
